A shock absorber does not simply “absorb” every impact by itself. In a vehicle suspension system, the spring absorbs and stores energy from road impacts, while the shock absorber controls how quickly that energy is released through damping. This combination allows the suspension to move when it encounters bumps while preventing the vehicle from continuing to bounce afterward.
Understanding the shock absorber working principle is important when selecting suspension components for motorcycles, ATVs, UTVs, and other vehicles. The correct balance between spring support and damping can directly affect ride comfort, stability, handling, and suspension response.
When a wheel travels over a pothole or bump, the suspension spring is compressed. The spring absorbs part of the impact energy and stores it as elastic potential energy.
However, a spring naturally wants to return to its original position once the load is removed.
If there were only a spring and no damping system, the suspension would compress when it encountered a bump and then rebound rapidly. The vehicle could continue moving up and down several times before the motion naturally disappeared.
This is similar to pressing down on a trampoline and releasing it. The spring-like material stores energy and then releases that energy back into motion.
Therefore, the spring is responsible for supporting the load and absorbing impact energy, but it cannot effectively control suspension movement on its own.
This is where the shock absorber becomes essential.
The primary function of a shock absorber is to control the movement of the suspension through damping.

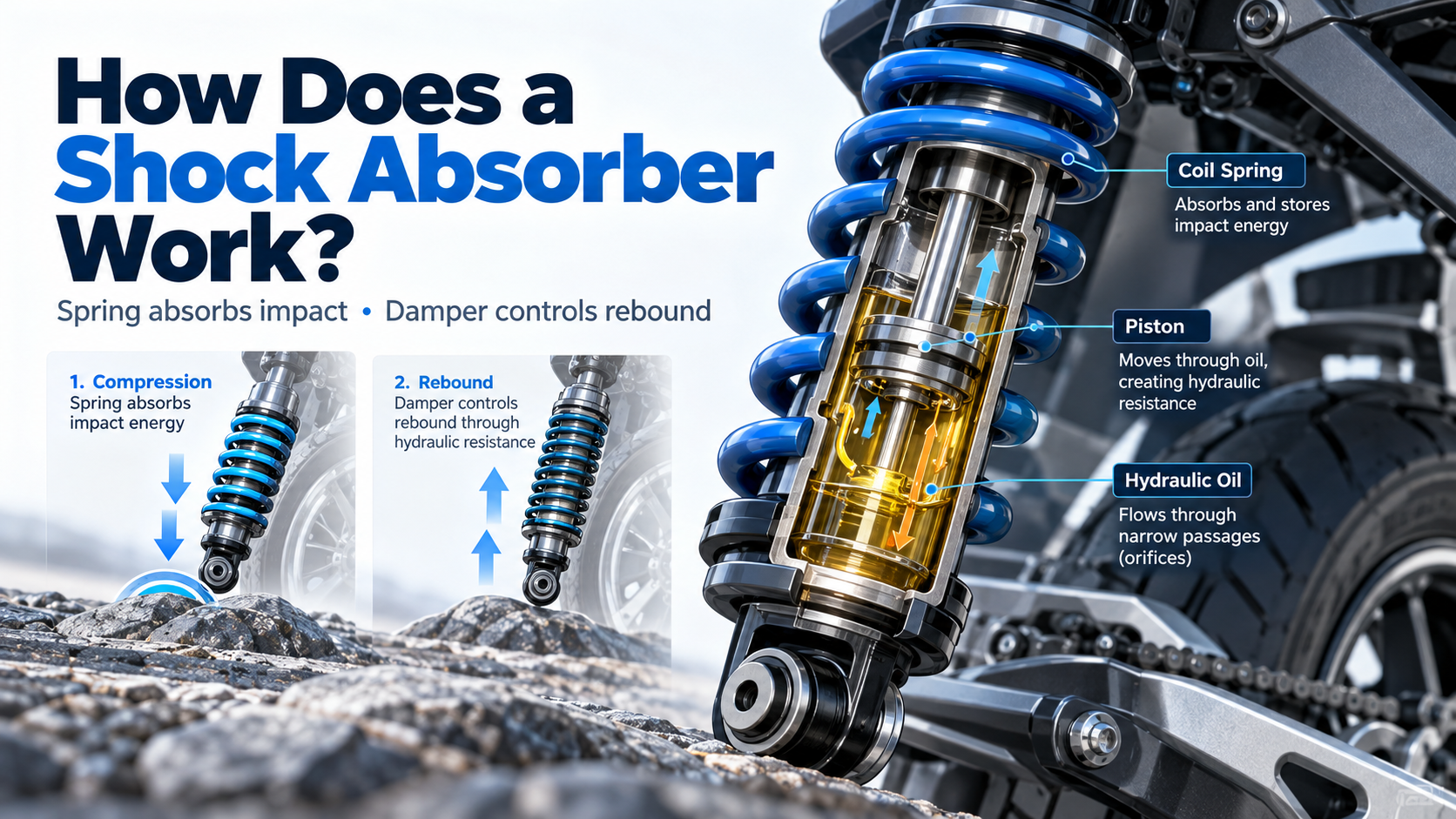

A typical shock absorber contains components such as a piston, hydraulic fluid, valves, and internal passages. When the suspension moves, the piston moves inside the shock absorber and forces hydraulic fluid through restricted passages.
Because the fluid cannot pass through these passages instantly, resistance is generated.
This resistance slows down the movement of the piston and therefore controls how quickly the suspension compresses and rebounds.
In simple terms:
The spring manages the energy. The shock absorber manages the movement.
This is why a properly designed suspension system requires both spring support and controlled damping.
When a motorcycle, ATV, or other vehicle travels over uneven terrain, the wheel moves upward relative to the vehicle body.
The suspension system responds by compressing.
At this point, the spring begins to absorb the energy generated by the road impact.
As the spring is compressed, it stores energy.
A stronger or softer spring can change how much force is required to compress the suspension, but the spring itself does not determine how quickly the suspension should move.
Without sufficient damping, the stored energy could cause the suspension to rebound too aggressively.
As the suspension moves, the shock absorber piston also moves.
Inside the shock absorber, hydraulic oil is forced through small passages and valve openings.
The restricted movement of hydraulic fluid creates damping resistance.
The narrower or more controlled the fluid path is, the greater the resistance can be under the corresponding operating conditions.
This resistance converts part of the suspension's mechanical energy into heat and helps control suspension movement.
After the spring has been compressed, it begins to return toward its original position.
The shock absorber controls this rebound movement instead of allowing the spring to release its stored energy all at once.
As a result, the wheel can return toward its normal position without causing excessive bouncing.
This controlled rebound is particularly important when a vehicle encounters a series of bumps in succession.
Shock absorber damping is commonly discussed in two primary stages: compression damping and rebound damping.
Compression damping controls how quickly the shock absorber compresses when the wheel moves upward relative to the vehicle.
It helps manage suspension movement when the vehicle encounters bumps, potholes, rough terrain, or sudden loads.
If compression damping is not appropriately matched to the application, the suspension may feel excessively soft or resist movement too strongly.
Rebound damping controls how quickly the suspension returns after compression.
This is particularly important because the spring naturally wants to release its stored energy.
Rebound damping prevents the spring from extending too quickly and helps keep the suspension under control.
For performance-oriented motorcycles, off-road vehicles, and adjustable suspension systems, the ability to fine-tune damping can help match the suspension response to different riding conditions and load requirements.
The basic principle of hydraulic damping is relatively straightforward.
Inside the shock absorber, the piston separates or controls different areas of hydraulic fluid. When the piston moves, oil is forced through valves and calibrated passages.
The fluid encounters resistance as it passes through these restricted areas.
That resistance produces the damping force.
The exact damping behavior depends on factors such as piston movement, valve design, oil characteristics, pressure conditions, and suspension configuration.
Modern shock absorbers can therefore be engineered to provide different damping characteristics for different applications.
This is one reason why shock absorber design cannot be based only on physical dimensions. The damping characteristics must also match the vehicle, spring, expected load, and intended operating conditions.
For motorcycles, suspension performance affects much more than ride comfort.
A motorcycle shock absorber helps control the movement of the suspension and contributes to maintaining predictable vehicle behavior when accelerating, braking, cornering, or riding over uneven surfaces.
For example, excessive rebound speed can make the rear suspension extend too quickly after compression. Insufficient damping may allow repeated suspension movement.
On the other hand, excessive damping can restrict suspension movement and make the ride feel unnecessarily harsh.
Therefore, the objective is not simply to maximize damping, but to achieve damping characteristics appropriate for the specific application.
This principle also applies to ATV and UTV suspension systems, where vehicle weight, terrain, suspension geometry, and operating conditions can vary significantly.
Several factors should be considered when evaluating or selecting a shock absorber.
A shock absorber designed for a street motorcycle may have different requirements from one designed for a dirt bike, ATV, or UTV.
Different applications place different demands on suspension travel, damping response, durability, and load capacity.
The spring and shock absorber work together.
A spring determines how much force is required to compress the suspension, while the shock absorber controls the speed of that movement.
Choosing a shock absorber without considering the spring characteristics can result in an unbalanced suspension setup.
Compression and rebound damping need to correspond with the intended vehicle and riding conditions.
For applications where operating conditions vary, an adjustable shock absorber can provide additional flexibility.
Rider weight, passenger weight, cargo, and other additional loads can influence suspension behavior.
For B2B buyers, distributors, manufacturers, and aftermarket brands, these factors are important when determining suitable shock absorber specifications.
Street motorcycles, off-road motorcycles, ATVs, and UTVs can encounter very different surfaces.
A suspension system intended for rough terrain may require different damping characteristics from one designed primarily for smooth roads.
An adjustable shock absorber allows certain suspension characteristics to be modified according to the application.
Depending on the design, adjustment may be available for damping, preload, or other suspension parameters.
This flexibility can be useful when the same basic suspension platform needs to accommodate different rider weights, loads, road conditions, or performance requirements.
For manufacturers and distributors, adjustable suspension products can also provide greater flexibility when developing product ranges for different markets.
RFY SHOCK currently offers adjustable shock absorbers as part of its motorcycle suspension product range, alongside off-road, scooter, electric vehicle, universal, ATV, UTV, and front suspension products.
Component | Main Function | What It Controls |
|---|---|---|
Spring | Supports the vehicle and stores impact energy | Suspension load and movement potential |
Shock Absorber | Controls suspension movement through damping | Compression and rebound speed |
Suspension System | Combines both components | Overall ride, stability, and wheel control |
The easiest way to understand the relationship is:
Spring = stores and releases energy
Shock absorber = controls the release of that energy
Neither component should be considered independently when evaluating overall suspension performance.
For B2B buyers, motorcycle manufacturers, distributors, aftermarket brands, and suspension system developers, product selection should begin with application requirements rather than simply choosing a shock absorber based on appearance or length.
Important information may include:
Vehicle type and model
Front or rear suspension position
Shock absorber length and mounting dimensions
Vehicle and expected load
Spring specifications
Suspension travel
Road or terrain conditions
Desired damping characteristics
Adjustment requirements
Quantity and target market
Providing accurate vehicle and suspension parameters before inquiry can help manufacturers recommend a more suitable configuration and reduce compatibility issues.
For custom suspension projects, drawings, samples, vehicle information, and specific damping requirements can provide a useful starting point for technical evaluation.
The spring primarily absorbs and stores energy from suspension movement, while the shock absorber controls that movement through damping. They work together rather than performing the same function.
The spring stores energy when compressed and naturally releases that energy during rebound. Without sufficient damping, the stored energy can cause repeated suspension movement.
Damping refers to the resistance that controls suspension movement. In hydraulic shock absorbers, this resistance is mainly generated as hydraulic fluid moves through valves and restricted passages.
Rebound damping controls how quickly the suspension extends after being compressed. It helps prevent the spring from releasing its stored energy too rapidly.
Adjustable shock absorbers can provide greater flexibility when suspension characteristics need to be tuned for different loads, riding conditions, or performance requirements. The available adjustment range depends on the specific shock absorber design.
A shock absorber is much more than a component that “absorbs shocks.” The spring absorbs and stores energy, while the shock absorber uses damping to control how that energy is released. Hydraulic fluid, pistons, valves, and restricted passages work together to regulate suspension movement during compression and rebound.
For motorcycles, ATVs, UTVs, and other powered vehicles, selecting the appropriate shock absorber requires consideration of vehicle type, load, dimensions, spring characteristics, terrain, and desired damping performance.
