Twin-Spring Vs. Single-Spring Motorcycle Shocks: What’s The Difference?

# Dual-Spring vs. Single-Spring Shock Absorbers: What’s the Difference?

When upgrading a motorcycle's suspension system, riders often ask: Are dual-spring shock absorbers better than single-spring ones?

The answer isn't a simple "yes" or "no." Dual-spring and single-spring shock absorbers utilize different spring configurations to achieve distinct suspension characteristics. The best choice depends on the motorcycle model, rider weight, load, riding style, suspension travel, and damping settings.

## What Is a Single-Spring Shock Absorber?

A single-spring shock absorber uses one main coil spring around the shock body.

When the motorcycle encounters a bump, the spring compresses to absorb the impact energy, while the damping system controls the speed of compression and rebound.

### Advantages of Single-Spring Shock Absorbers

* Simple and reliable design

* Easier to tune the suspension system

* Simpler construction

* Suitable for daily commuting and street riding

* Wide range of spring rate options available

* Easily matched to various motorcycle applications

A properly selected and tuned single-spring shock absorber can provide excellent comfort, stability, and handling.

## What Is a Dual-Spring Shock Absorber?

A dual-spring shock absorber uses two springs with different characteristics, allowing the suspension system to respond differently across various stages of compression.

In many designs, the softer spring provides a more comfortable initial response when encountering small bumps, while the stiffer spring offers additional support later in the suspension travel.

This design helps create a progressive suspension feel. ## Dual-Spring vs. Single-Spring: Key Differences

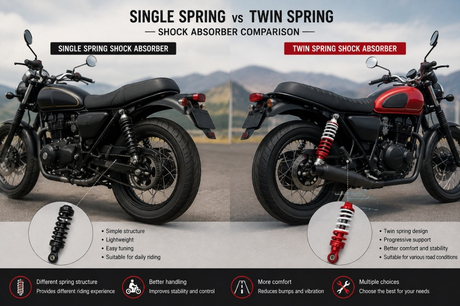

| Feature | Single-Spring Shock | Dual-Spring Shock |

| Spring Configuration | Single main spring | Dual springs |

| Initial Response | Depends on spring rate and setup | Can provide a softer initial response |

| Deep-Stroke Support | Primarily depends on spring rate | Can provide additional progressive support |

| Load Adaptability | Performs well when set up correctly | Potentially more flexible |

| Tuning | Relatively simple | More complex |

| Design Complexity | Lower | Higher |

| Typical Applications | Commuting, street riding, general use | High performance, variable loads, specialized use |

## What are the advantages of dual-spring shocks?

1. Better balance between comfort and support

One of the biggest challenges in suspension tuning is balancing comfort and support.

Springs that are too soft can lead to excessive suspension travel or bottoming out under heavy loads. Springs that are too stiff can make the motorcycle feel harsh over small bumps.

A dual-spring design can utilize different spring characteristics to create a more progressive response.

2. Better adaptation to varying loads

Motorcycles may be used for:

* Solo riding

* Riding with a passenger

* Carrying luggage

* Carrying extra cargo

As the vehicle's total load changes, suspension requirements change accordingly.

A well-designed dual-spring system can better handle these varying load conditions.

3. Stronger support during deep compression

When the suspension encounters significant impacts, stronger support is needed to prevent excessive compression.

Dual-spring systems can be designed to provide increased resistance as the shock compresses deeper into its stroke, thereby improving stability and reducing the likelihood of bottoming out.

## Are single-spring shocks inferior?

No.

This is the most important point to understand.

The number of springs does not determine the overall performance of the shock absorber. Suspension performance depends on numerous factors, including:

* Spring rate

* Preload

* Shock travel

* Compression damping

* Rebound damping

* Piston and oil circuit design

* Shock absorber length

* Mounting dimensions

* Motorcycle weight

* Rider weight

* Riding conditions

A high-quality single-spring shock absorber—provided the spring rate and damping are properly matched—can outperform a poorly matched dual-spring setup.

The goal is not simply to increase the number of springs, but to achieve the right suspension performance for the motorcycle.

Which type should you choose?

Daily Commuting

For city riding, commuting, and everyday street use, a single-spring shock absorber is an excellent choice.

Its simple design makes it easier to tune and match to the motorcycle.

A dual-spring design offers certain advantages when handling heavy or variable loads; however, selecting the appropriate spring rate is far more critical than simply choosing a dual-spring configuration.

Tuning the suspension system as a whole—including spring rate, damping, preload, shock absorber length, travel, and compatibility with the motorcycle—significantly impacts performance.
