Quick Highlights
365mm eye-to-eye length, fits ATVs & motorcycles
12mm spring wire, supports up to 450kg load
Multiple clevis widths: 20.5–36mm optional
Yellow spring finish, easy batch identification
Top/bottom eye sizes customizable for OEM use

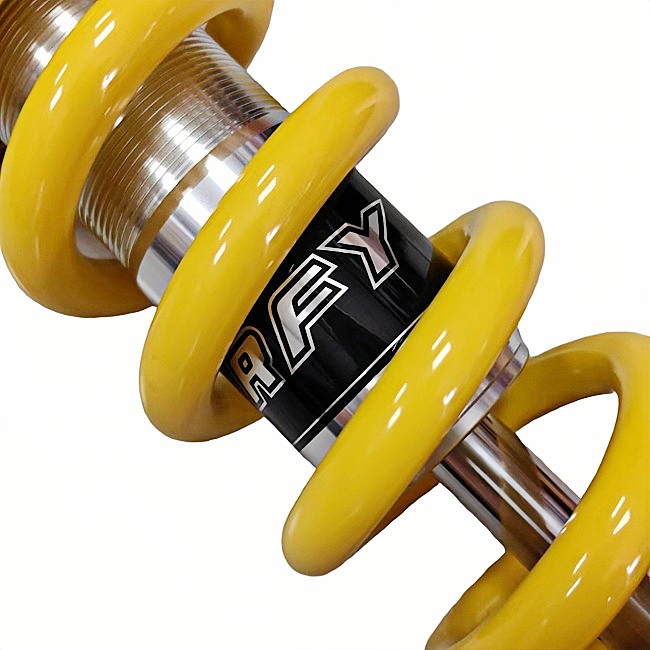

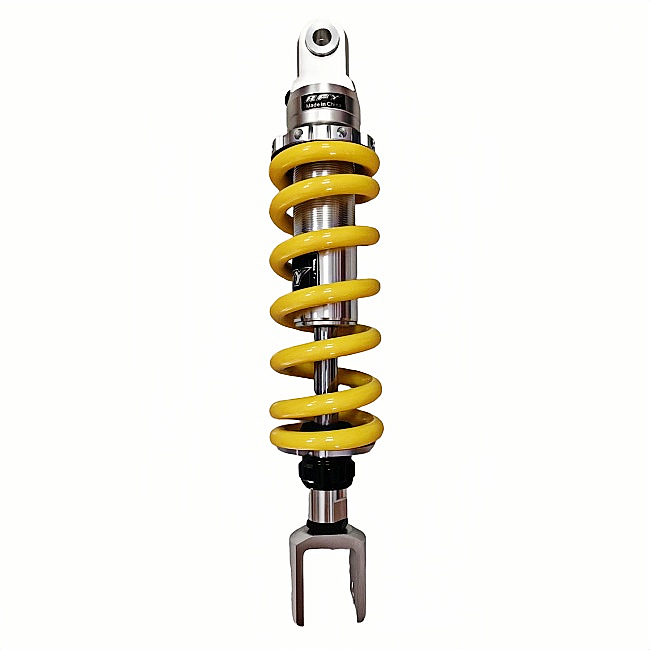

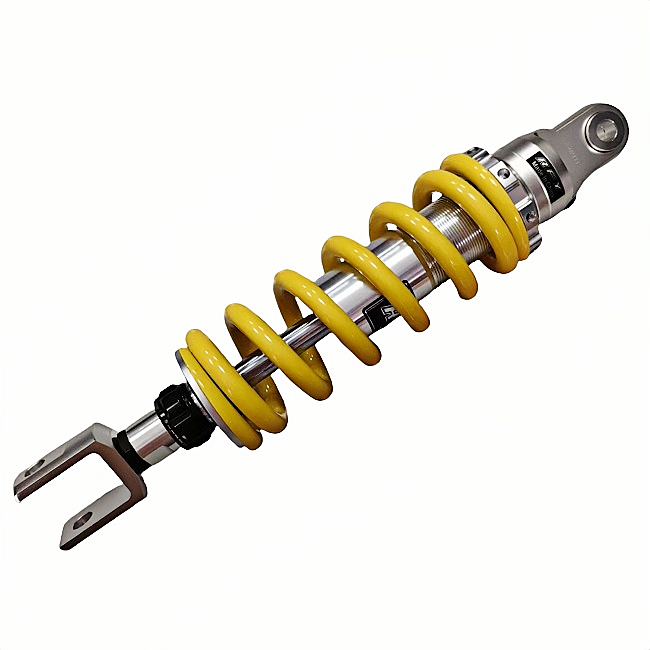

RFY SHOCK-365 Rear Shock Absorber – Yellow Spring, Heavy-Duty Design
Precise Dimensions for Versatile Fitment
This rear suspension unit features an eye-to-eye length of 365mm and supports multiple clevis widths (20.5–36mm) to fit a wide range of motorcycle and ATV applications.

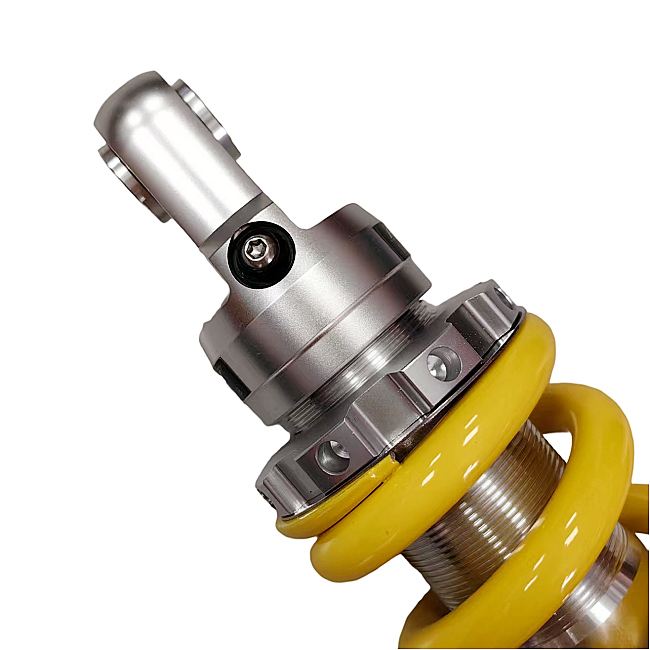

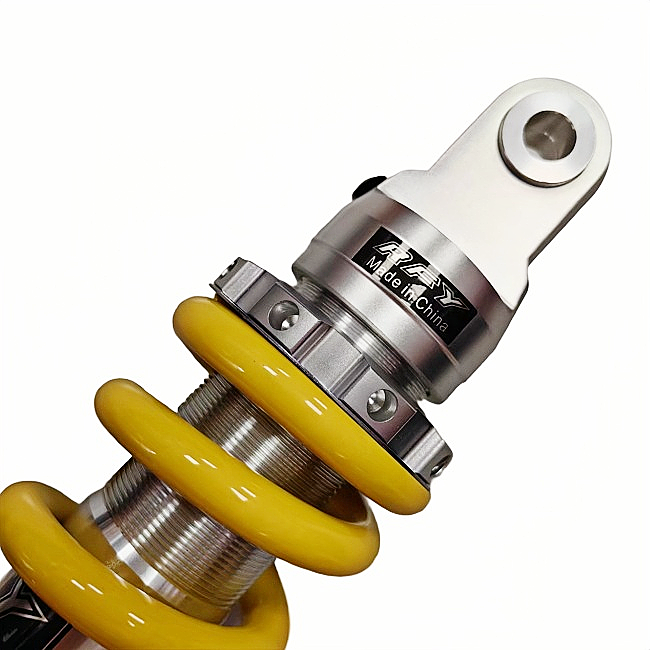

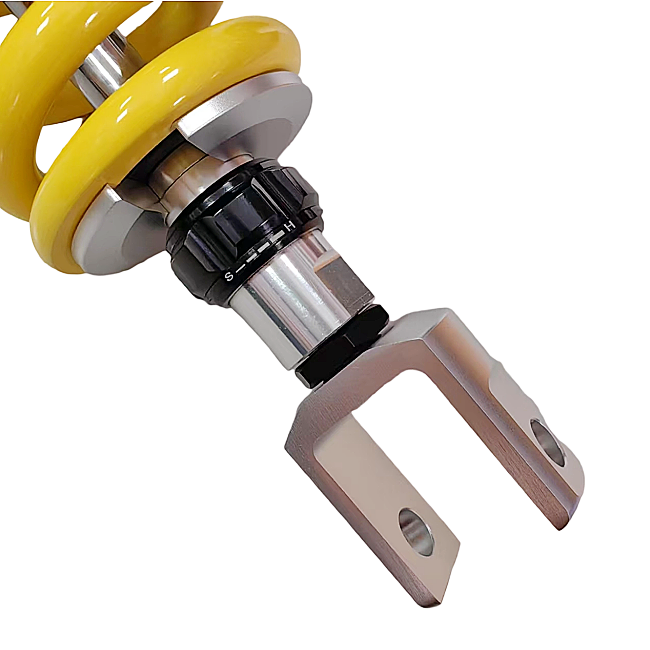

Top and bottom mounting points are offered in common dimensions:
Top Eye Thickness: 25mm (30mm or 40mm optional upon request)
Top Eye Diameter: 10mm
Bottom Eye Diameter: 8mm / 10mm (10mm screw thread)
Spring Outer Width: 77mm
Reliable Performance Under Load
Engineered with a robust 12mm spring wire and a total of 40 coil segments, this shock is rated for a maximum static load of ≤450kg per unit. The structural design ensures stable performance under varied riding conditions, whether applied to single-rider setups, two-up touring, or cargo-hauling use cases.
Each unit undergoes standard testing for load-bearing consistency and fatigue resistance, providing dependable damping response over time.
Industrial Applications and Market Use
This RFY SHOCK absorber is compatible with a range of mid-sized motorcycles and ATVs,as well as custom assemblies. It is suitable for:
OEM replacement for older off-road models
Custom motorcycle frame projects
Aftermarket ATV shock upgrades
Medium-weight electric motorcycle suspensions
The yellow spring finish supports visual distinction for batch identification or brand-matching during assembly.
Customization and B2B Ordering Options
Custom mount dimensions are available for bulk orders. Clients with specific top or bottom eye thickness, clevis spacing, or spring characteristics may request configuration drawings before procurement.
